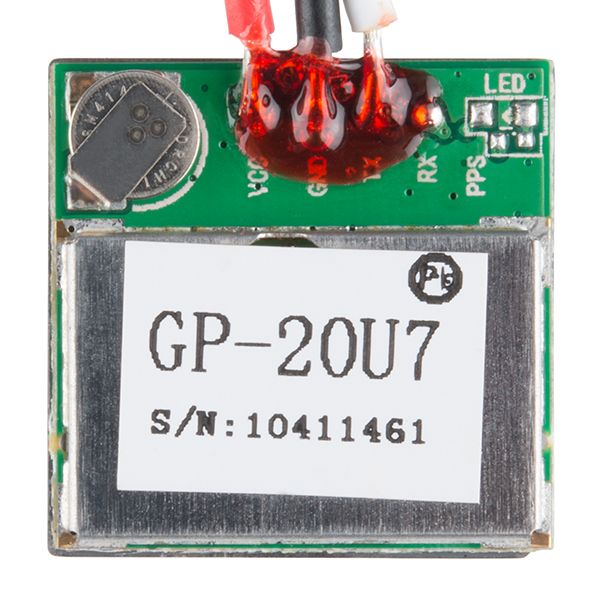

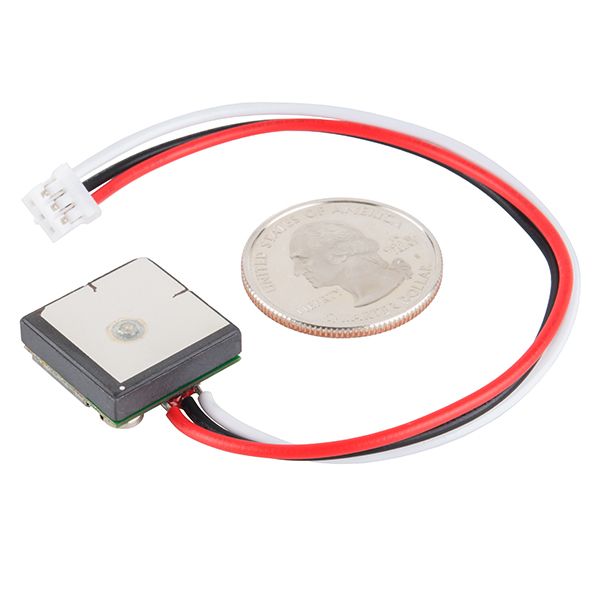

Description: The GP-20U7 is a compact GPS receiver with a built-in high performances all-in-one GPS chipset. The GP-20U7 accurately provides position, velocity, and time readings as well possessing high sensitivity and tracking capabilities. Thanks to the low power consumption this receiver requires, the GP-20U7 is ideal for portable applications such as tablet PCs, smart phones, and other devices requiring positioning capability.
This 56-channel GPS module, that supports a standard NMEA-0183 and uBlox 7 protocol, has low power consumption of [email protected] (max), an antenna on board, and -162dBm tracking sensitivity. With 56 channels in search mode and 22 channels “all-in-view” tracking, the GP-20U7 is quite the work horse for its size.
Features:
- 56-Channel Receiver (22 Channel All-in-View)
- Sensitivity : -162dBm
- 2.5m Positional Accuracy
- Cold Start : 29s (Open Sky)
- 40mA @ 3.3V
- 3-pin JST Terminated Cable
Dimensions:
- 18.4mm x 18.4mm x 4mm
Documentation and Downloads
- Datasheet (GP-20U7)
