SmartSound PIR Motion Activated Audio Player V1

(0 review)

SKU : FNP-702A-V1
Quantity on Hand : 6
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

42.95 42.95 USD 42.95

42.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Click Here to view Version TWO

Features

  • PLEASE NOTE THIS IS VERSION ONE CLICK ABOVE FOR VERSION TWO
  • Adopt passive infrared sensing technology
  • The detector/sensor can be rotated 60° at both left and right sides
  • Can change sound contents at will
  • Support memory function when power-off
  • Support to play MP3 audio files with high sound quality
  • Automatically trigger to play sound back
  • Load/change audio files through a Micro SD card(TF card), easy to operate
  • Built-in SPI flash as the internal memory
  • Sound volume is adjustable
  • Built-in 2W amplifier to ensure loud and beautiful sound output
  • Auto sleeping circuits design, which can keep long-term standby
  • Built-in automatic power re-charging circuits
  • Plug and play type design
  • Built-in 500mAH lithium battery, time durable
  • Mains to 5VDC power adaptor included (to charge or opertate unit)
  • USB cable (included) can be used to charge the unit directly from a USB port (Cable is Type A male to micro USB port (included)
  • Pivoting wall mounting foot included
  • For indoor use only

Electrical Parameters



Product Appearance

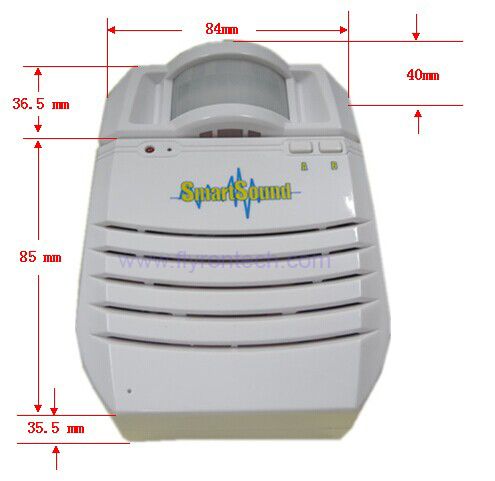

  • Dimensions

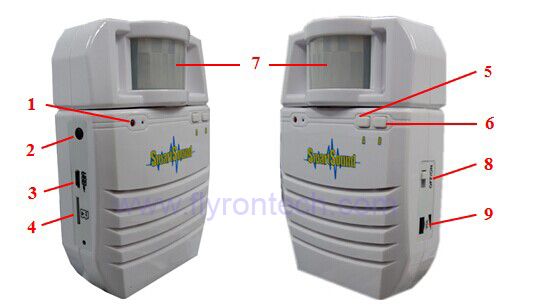

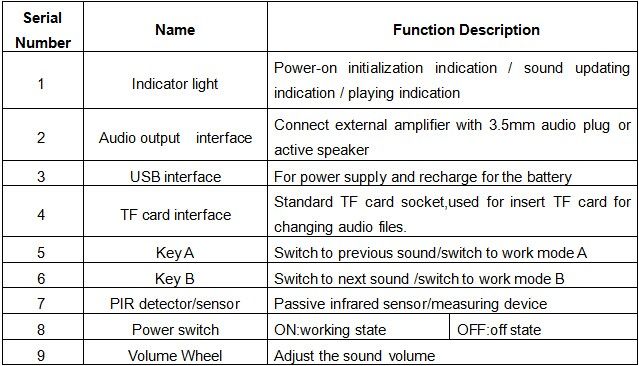

  • Operation Interface

Documentation and Downloads
