Features:

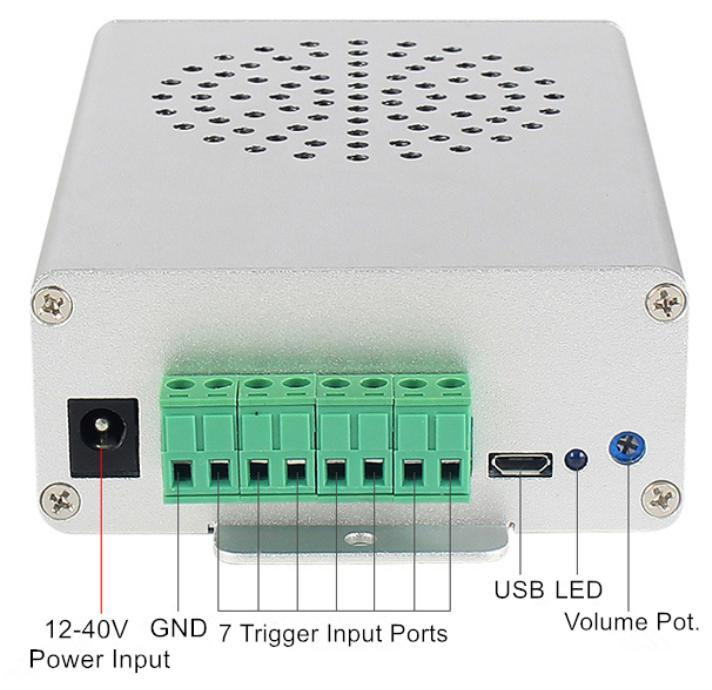

7 trigger inputs are available and triggered by a negative pulse or GND.
The function/trigger mode of each input can be set individually through a configuration file.
Equipped with a high-quality audio decoder that is able to decode MP3 and WAV audio formats.
Built-in 8 Mbytes flash memory that supports about 8 minutes of MP3 files of 128Kbps.
Able to update audio files through the micro USB port based on PC like using a USB flash drive (Micro USB cable included).
Built-in speaker and class D 10watts amplifier.
Equipped with a DC power jack and supports 12-40V DC input (12" long power cable to connect to your supply included).
Adjustable sound volume through the potentiometer.
Adopts the robust and durable aluminum enclosure.
Industrial grade design and strong anti-jamming capability.
Dimensions:142 x 88 x 38(mm)
Technical Parameters:
Working Voltage: 12 - 40V DC
Working Current: ≤1000mA
Power Consumption: ≤10W
Flash Memory Size: 8MB
Audio Format: MP3 / WAV
