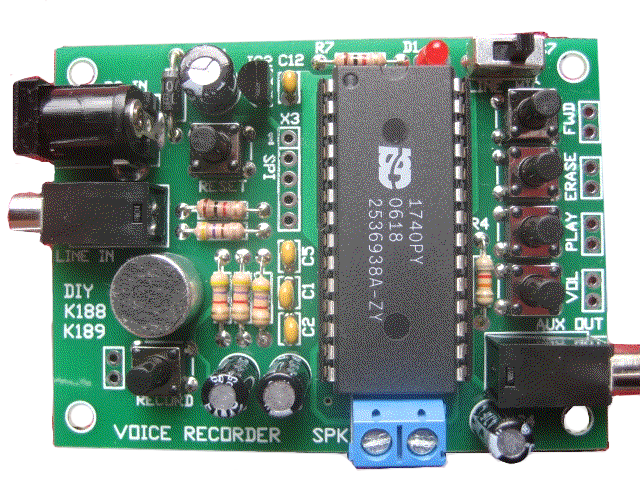

120 Second Non-Volatile Multi Message Recorder (Assembled)

(0 review)

SKU : CPS189-TBA
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

68.95 68.95 USD 68.95

68.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Description: Non-volatile multi message recorder using ISD chips. Just change one resistor for longer duration. Standalone operation using just six onboard bottons. Record via built-in microphone or external line in. Speaker and line out connector. SPI interface. SPI mode allows full control of the chip via the serial interface. This includes random access to any location inside the memory array by specifying the start and end address. SPI mode also allows access to an internal register for configuration of audio paths, inputs, outputs and mixing.

Specifications:

  • Supply Voltage: 8-24 VDC

  • PCB Dimensions: 2.75" x 2"

Please Note: Speaker not included.

Documentation and Downloads
