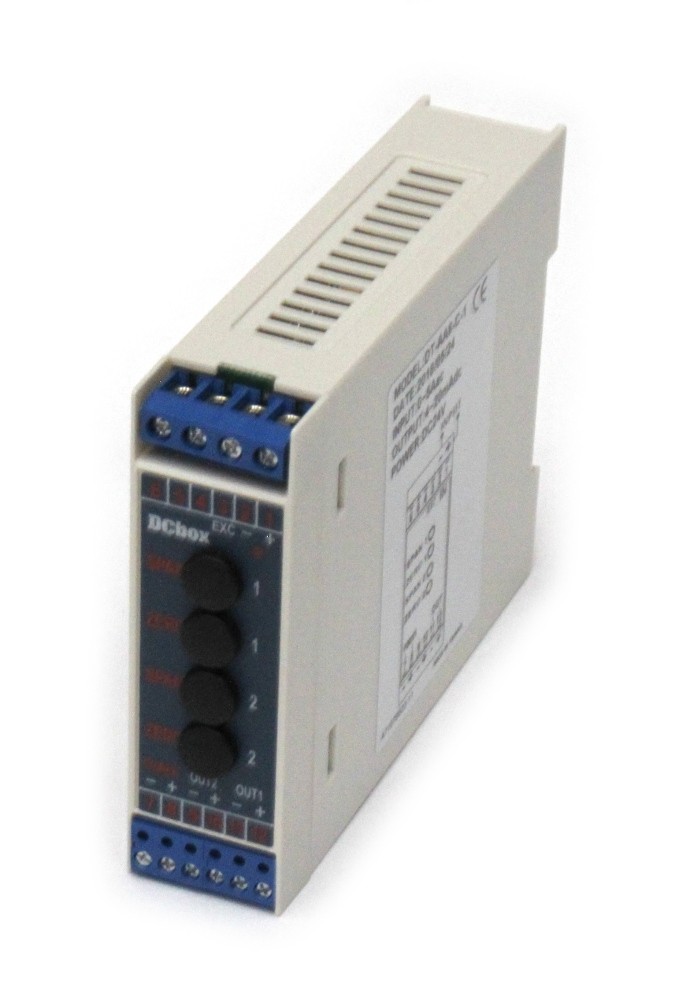

Description: This isolated transmitter which converts a 0 to 30 volts DC to a 4 to 20 mA DC output. It is suitable for use for monitoring the voltage of batteries and DC power supplies. It converts the DC voltage value of the input current to a 4 to 20mA DC current signal suitable for PLCs, dataloggers and data acquisition equipment.
It features 3 way 1.5 kV isolation (input / output 1 / supply). The span and zero of the output current can be adjusted over a wide range.
Features:
- 0.1% Full scale accuracy
- 0 to 30 VDC input
- 4 to 20 mA output
- Input resistance ≥2 MΩ
- Wide voltage range (18 to 60 VAC or DC) input power
- Three way, 1.5kV isolation
- Mounts onto DIN rail
- High stability
- CE EMC certification
- Dimension 23 x 76 x 96 mm
Specifications:
| Measuring Accuracy: | 0.1% Full scale |
|---|---|
| Response Time (0 to 90%): | < 250 ms |
| Power Supply: | 18 to 60 VAC/DC |
| Output Drive Capability (maximum): | 10 V or 500 Ω |
| Output Ripple: | <0.1% Full scale |
| Temperature Coefficient (0 to 50 °C): | 100 ppm/°C |
| Dielectric Strength: | 1.5 kVAC for 1 minute1.2 kVDC |
| Environmental Operating Range: | 0 to 60 °C, 20 to 90% RHT non condensing |
| Environmental Storage Range: | 0 to 70 °C, 20 to 90% RHT non condensing |
| Dimensions: | 23 mm wide × 76 mm high × 96 mm deep |
| Manufacturer Part: | STD-9INA |
